Solas Approved 4persons Inflatable Life Raft
SOLAS Approved 4persons Inflatable Life Raft DescriptionY type inflatable life rafts are designed by ourselves. They are in accordance with ISO9650-1: 2005 and be approved by GL. They can be used by leisure activating small craft up to 24m length of hull as life saving equipment.TypeY-4Y-6Y-8Y-10Y-1......
Send Inquiry
Product Description
Description
Y type inflatable life rafts are designed by ourselves. They are in accordance with ISO9650-1: 2005 and be approved by GL. They can be used by leisure activating small craft up to 24m length of hull as life saving equipment.
| Type | Y-4 | Y-6 | Y-8 | Y-10 | Y-12 | |
| Physical form | rectangular octagon | |||||
| Capacity | 4 | 6 | 8 | 10 | 12 | |
| Length(mm),±1000 | 1700 | 1990 | 2255 | 2490 | 2730 | |
| Width(mm),±1000 | 1700 | 1990 | 2255 | 2490 | 2730 | |
| Height(mm),±50 | 1200 | 1250 | 1400 | 1400 | 1400 | |

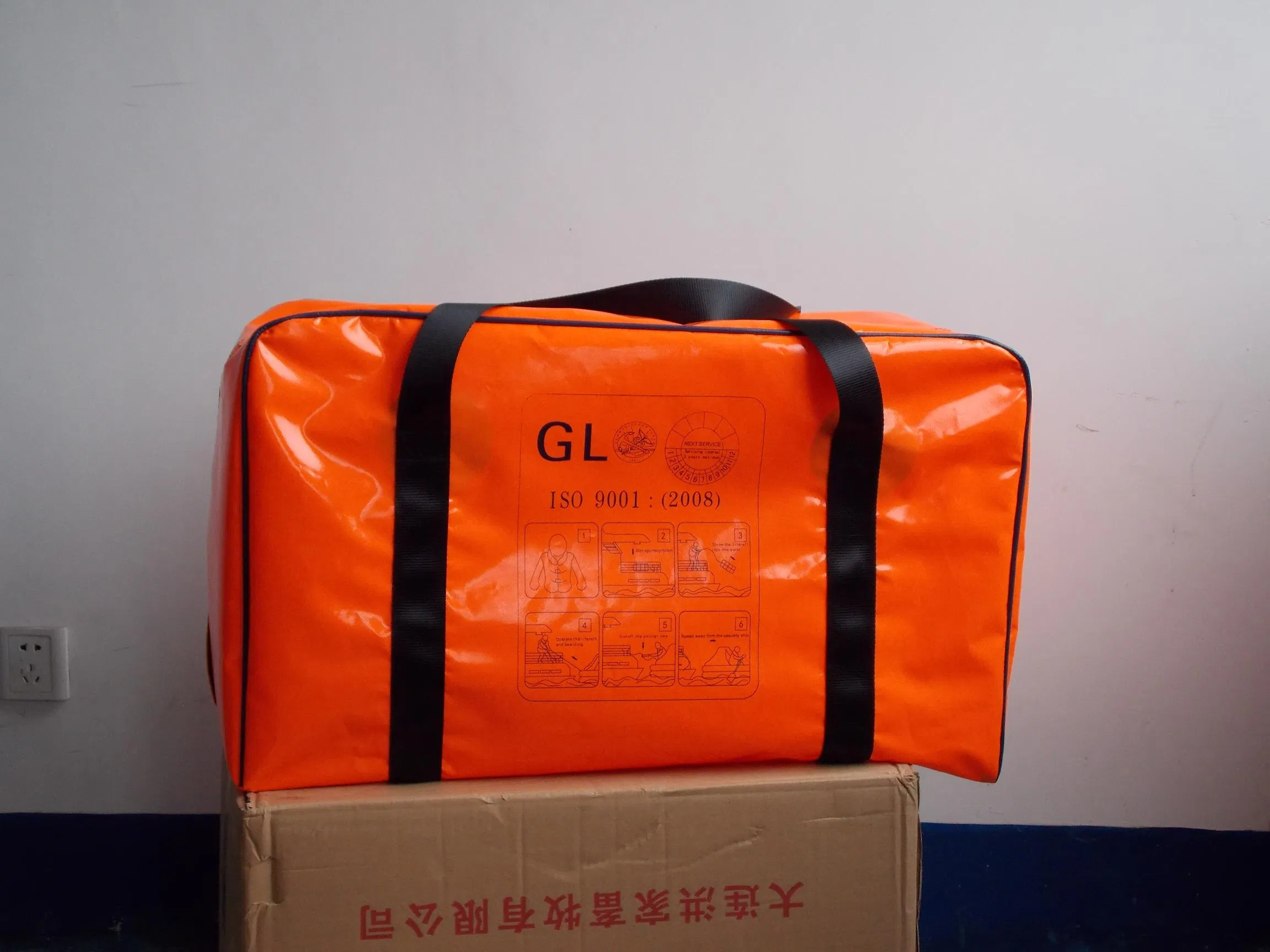

| Packing dimension | Soft packing | 360×710 | 410×720 | 410×720 | 410×820 | 440×870 |
| Hard packing | 760×485×360 | 765×530×370 | 765×545×380 | 815×560×390 | 915×560×370 | |
| Weight,kg≤ | Soft packing | 35 | 41 | 45 | 49 | / |
| Hard packing | 41 | 49 | 54 | 58 | 65 | |
Inflation Method:
After throwning over from ships, the life raft can be inflated and opened automatically. If the ship sinks very fast and the life raft cannot be thrown-over, the raft still can float up from water under the action of Hydrostatic Release Unit and can be inflated and opened automatically.
Max. Storage Height: the installation height is 18m from water surface
Types of life raft:
| Type | CAPACITY | DETAIL |
| XH-A | 6,8,10,12,15,16,20,25,30 | inflatable throw-over board life raft, design for ships engaged in international voyage. |
| XH-D | 12,15,16,20,25 | inflatable davit-launch type life raft, design for ships engaged in international voyage. |
| XH-Z | 6,10,15,20,25,50,100,110,125 | ihflatable self -righting type life raft, design for ships engaged in international voyage. |
| XH-Y | 4,6,8,10,12 | According to ISO standard 9650-2:2005. |
| XHY(SR) | 4,6,8,10,12 | inflatable open reversible life raft ,Design for ships engaged in zhujiang area.(self-righting) |
More details, please feel free to contact us.
Company:
Chongqing Gathering Marine Equipment Co., Ltd. is a leading manufacturer and supplier of marine equipment from China. Our company was established in 2007.
We are professional in a hug range of marine equipment especially in Marine propulsion systems, marine external fire fighting system(Fi-Fi), G.R.P Life / Rescue Boats, Marine Environment Protection Equipment & Water Treatment Plant, Marine Life Saving Equipment LSA (Life rafts, life jackets, immersion suit, Life buoy etc), Marine Fire Fighting Equipment FCS( Self-contained Breathing Apparatus SCBA.
Emergency Escape Breathing Devices EEBD, SCBA Refilling Air Compressor, Fireman Suit, Heat Insulated Suit, Chemical Protective Suit etc.), Load Testing Water Bags and other marine application spare parts. Our products have been approved by IACS, such as CCS, ABS, BV, RINA ,GL, DNV, LR, KR, NK and are in accordance with the latest SOLAS regulation and IMO standard.
Certificate:
